RC1 Noise Suppressor |
The RC1 Noise Suppressor is designed to eliminate noise caused by switching of inductive loads. Pump motors, solenoid valves, motor contactors, and other inductive loads cause high voltage spikes on the AC line when they are switched on or off. The RC1 eliminates these spikes at the source, preventing them from affecting sensitive equipment. |
|
|

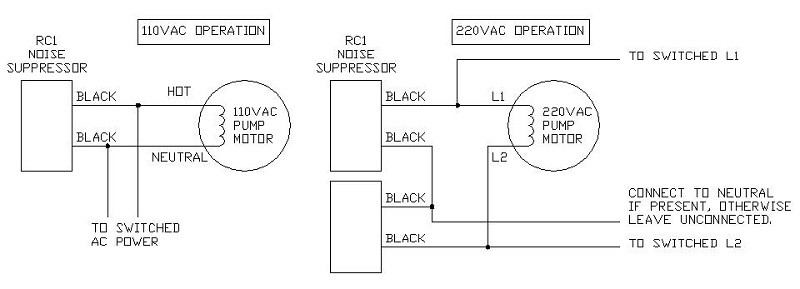

Connect the RC1 directly across the hot and neutral wires of the load, as close as possible to the coil or motor winding. This will allow the RC1 to filter the inductive noise before it travels to other devices. For best results, install one RC1 on each suction motor, solenoid valve, and motor contactor at the site. The RC1 is constructed as small as possible to allow it to be mounted inside the junction box of the dispenser. |
|
|
|
SPECIFICATIONS
INPUT |
(Black Wires) |
Operating Voltage |
250 VAC Maximum |
Internal Capacitance |
0.1uF |
Internal Resistance |
68 Ohms |
Dimensions |
1.0 x 0.6 x 0.4 Inches |
Wire Length |
5 Inches |
MODEL NUMBERS
MODEL NUMBER |
DESCRIPTION |
RC1 |
RC1 Noise Suppressor |
ADDITIONAL DOCUMENTATION:
(These files are in PDF Format.)
RC1 Information Page
RC1 Installation Instructions
